Schematic diagram of dry fog dust suppression system

①Water Tank ②Booster Pump ③Water Purifier ④Air Compressor ⑤Air Tank ⑥Precision Filter ⑦Dry Fog Machine ⑧Water and Air Control Box ⑨Dry Fog Box Spray Assembly ⑩Water and Air Distributor ⑪Universal Joint Spray Assembly ⑫Water Pipeline ⑬Air Pipeline ⑭Hybrid Pipe

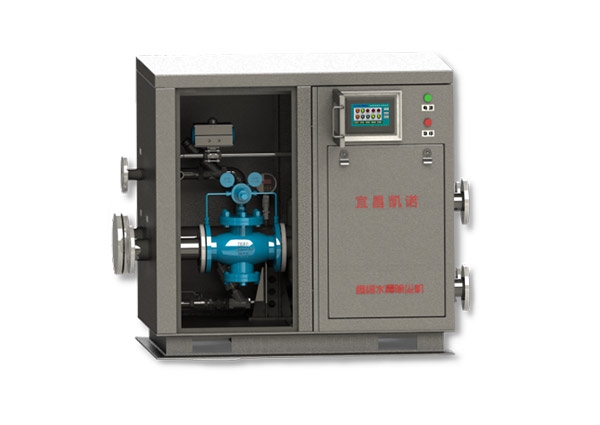

Dry Fog Machine

The "KD-GW series ultra-fine dry fog dust collector" independently developed and designed by our company is also referred to as "dry fog machine", which is the core equipment of the whole dry fog dust suppression system. Dry fog dust suppression device can effectively absorb the dust by spraying high-speed dry fog airflow after absorbing the dust into clusters then settle the absorbed dust by the effects of gravity so as to achieve the purpose of dust suppression.

Product Parameters

Product Features:

※ The shell of the mist dryer is made of 304SS or 316SS stainless steel, which has excellent corrosion resistance.

※ The mist dryer adopts centralized modular design, which is convenient for maintenance and control.

※The mist dryer has the function of anti freezing in winter, and can automatically purge and drain the pipeline before shutdown.

※ The mist dryer has a user-friendly operation interface, and can communicate with customer equipment quickly.

※ After spraying dry fog on the material, the water consumption is ≤ 0.5 % of the material weight, and the water content increase is ≤ 0.2 % of the material weight.
